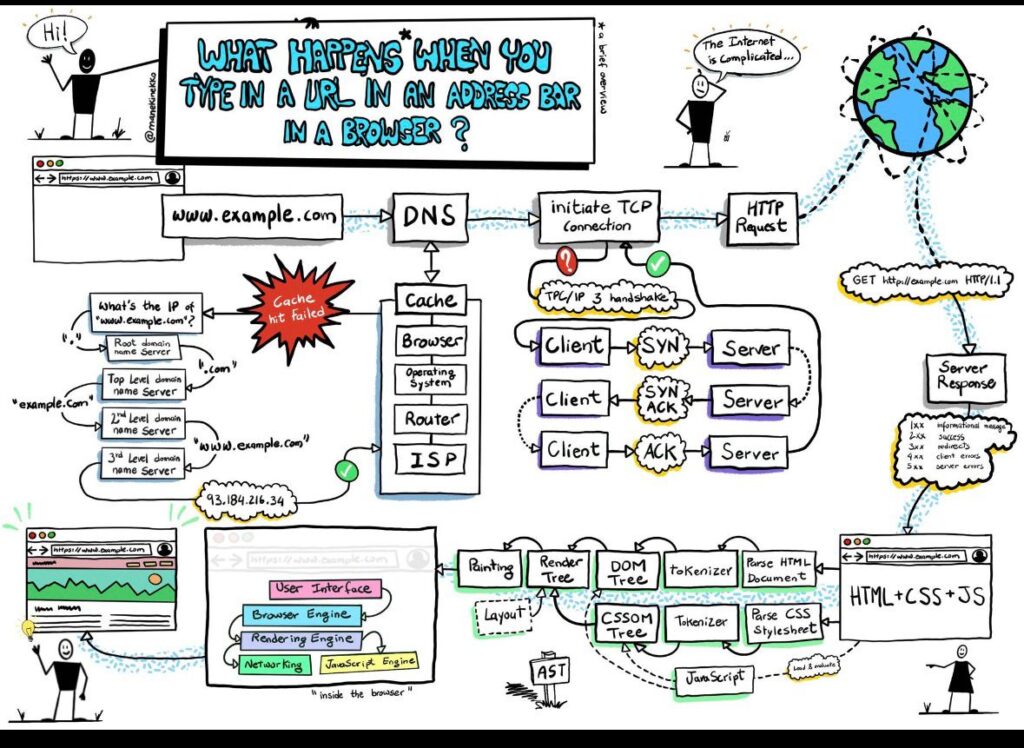

The Journey of a URL: What Happens When You Hit Enter the URL in browser?

When you type a URL into your browser and hit Enter, a complex chain of events is triggered to transform a line of text into a functional website. Here are the complete notes on that process, broken down into five logical phases.

---

Phase 1: The DNS Lookup (Finding the Address)

Before the browser can connect to a server, it needs to translate the human-readable URL (e.g., www.example.com) into a machine-readable IP address (e.g., 93.184.216.34).

1. Browser Cache: The browser checks its own internal “phonebook” to see if you’ve visited this site recently.
2. OS & Router Cache: If not found, it asks your computer’s Operating System, then your router.
3. ISP (Recursive) Resolver: If still unknown, the request goes to your Internet Service Provider.
4. The DNS Hierarchy: If the ISP doesn’t have it, it queries the Root Nameservers, which point to the Top-Level Domain (TLD) server (like .com), which finally points to the Authoritative Nameserver that holds the actual IP.

---

Phase 2: The TCP/IP Handshake (Connecting)

Once the IP address is known, the browser must establish a connection to the server. Most websites use HTTPS, which requires a reliable connection.

• SYN (Synchronize): The client sends a packet to the server asking to connect.
• SYN-ACK (Acknowledgment): The server replies, confirming it is open for business.
• ACK: The client sends a final confirmation.
• TLS Handshake: For secure (HTTPS) sites, an additional “handshake” occurs here to exchange encryption keys, ensuring no one can eavesdrop on your data.

---

Phase 3: The HTTP Request

Now that the “pipe” is open, the browser sends an HTTP Request. This is a text-based message that tells the server exactly what the user wants.

• Method: Usually a GET request (asking for data).
• Headers: Includes info like what browser you are using (User-Agent) and what types of files you can accept.
• URL Path: Telling the server exactly which page or file to send back.

---

Phase 4: The Server Response

The web server receives the request, finds the content on its hard drive (or generates it using a database), and sends it back.

• Status Codes: The response starts with a code. 200 means success, 404 means not found, and 500 means the server crashed.
• Response Body: This contains the actual HTML code of the website.

---

Phase 5: Browser Rendering (Building the Page)

This is the “construction” phase where the browser turns raw code into the visual page you see.

1. Parsing HTML: The browser reads the HTML and builds the DOM (Document Object Model)—a tree-like structure of all the elements on the page.
2. Parsing CSS: It reads the styling rules and builds the CSSOM (CSS Object Model).
3. JavaScript Execution: The browser downloads and runs JavaScript, which can change the DOM or add interactivity.
4. Render Tree: The DOM and CSSOM are combined to figure out what is actually visible.
5. Layout & Painting:
   • Layout: Calculating the exact coordinates and size of every box on the screen.
   • Painting: Filling in pixels with colors, images, and borders.

---

Key Summary Table

Step	Primary Protocol	Goal
Lookup	DNS	Convert Name $\rightarrow$ IP Address
Connect	TCP/TLS	Establish a secure “conversation”
Request	HTTP	Ask for the specific webpage files
Render	HTML/CSS/JS	Turn code into a visible, interactive UI
